Manoeuvrability in the tightest of spaces

    • Compact chassis and good maneuverability for transports in narrow aisles
    • Powered traction driving and lifting performance for loads of up to 1.5 t without effort
    • Operator protection through long, low mounted tiller and low chassis
    • 180 kg light weight truck can be used anywhere, even on mezzanines

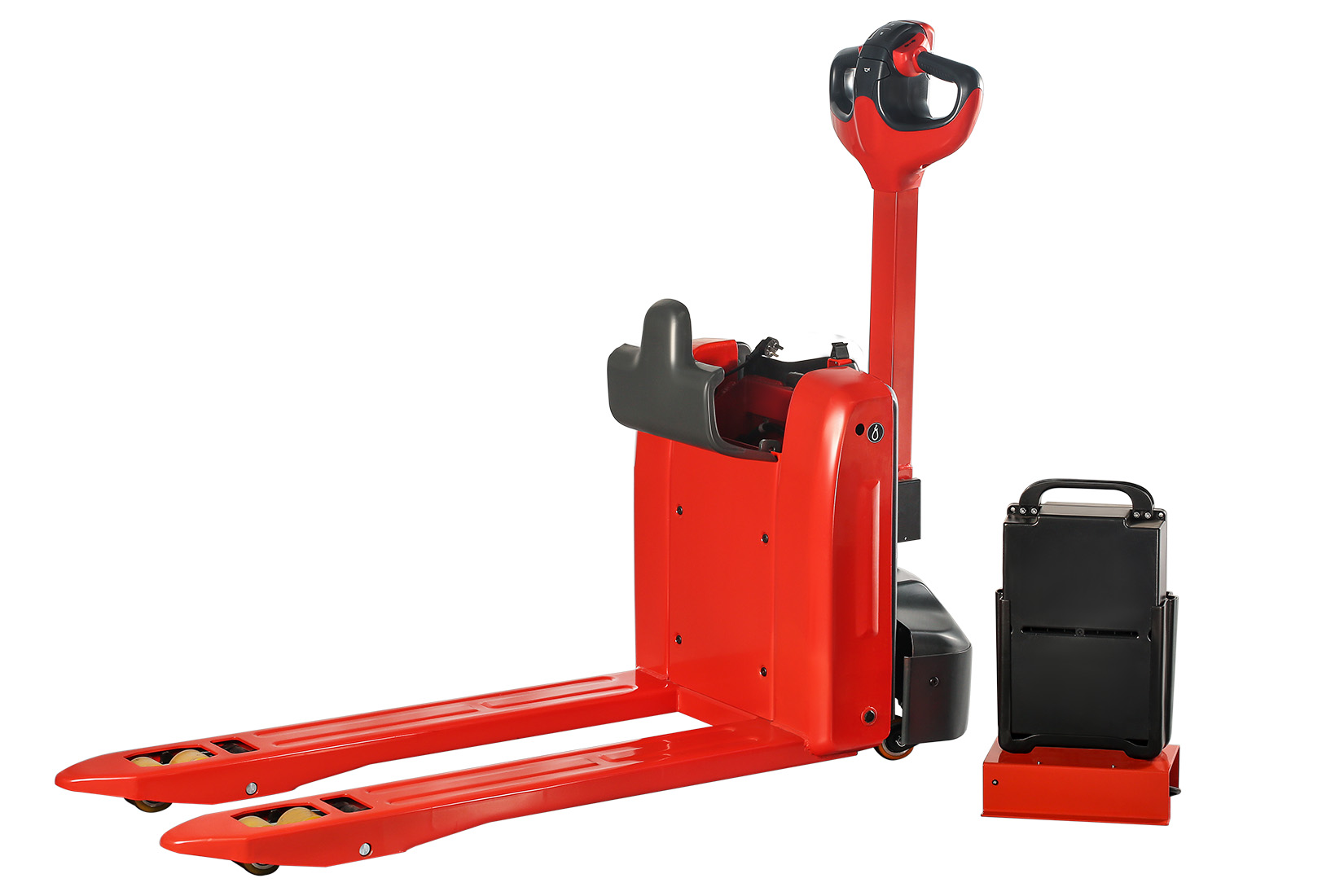

    • Lithium-ION battery allows intermediate charging and increases operating time


    • Long, low mounted tiller guarantees sufficient safety distance between operator and truck
    • Low chassis prevents the driver´s feet from getting under the truck
    • Effective parking brake to hold the truck safely on slopes or on lorry tail lifts

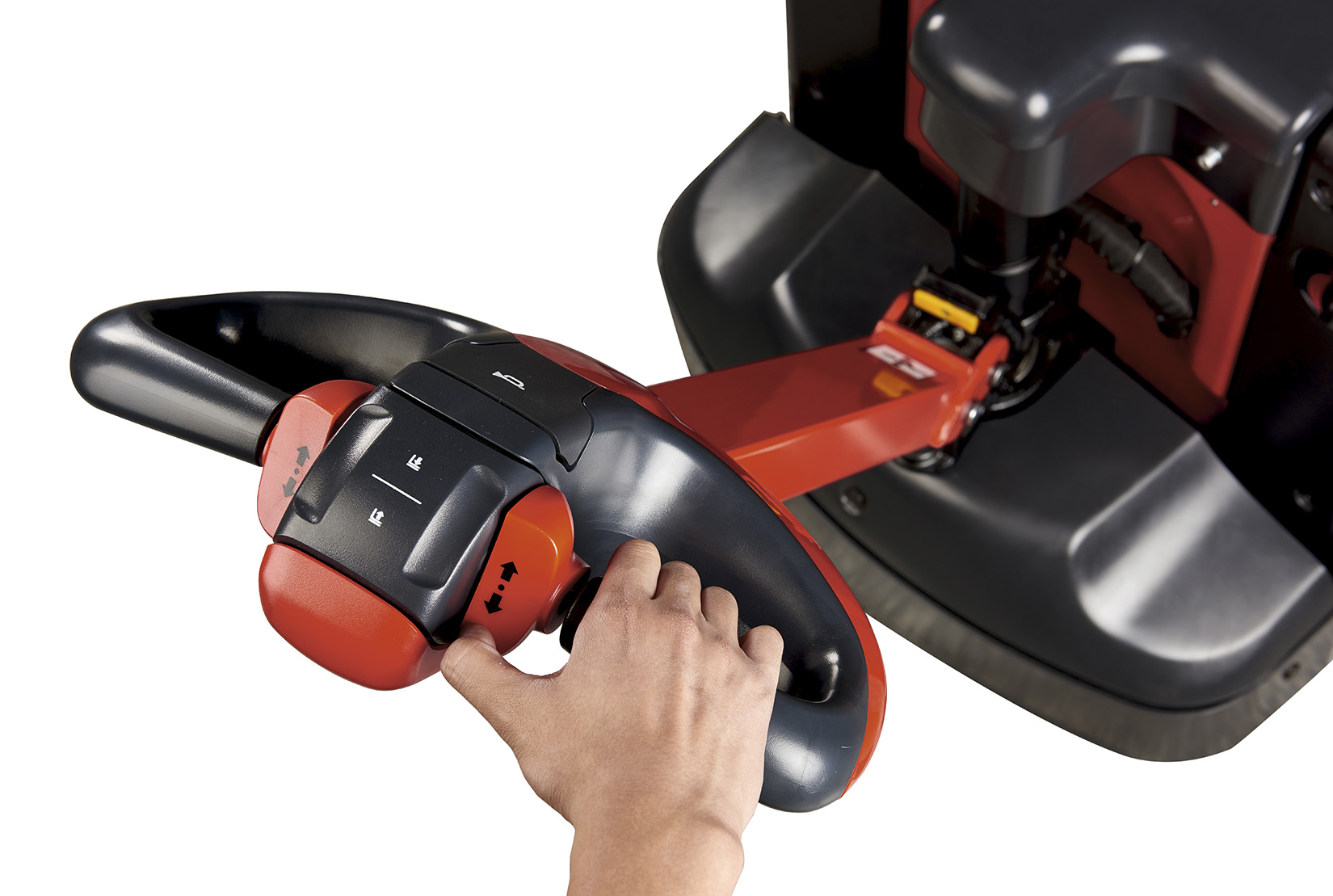

    • Ergonomic tiller head ensures precise and comfortable handling
    • Creep speed function with vertical tiller arm improves maneuverability in confined spaces
    • Built-in charger enables opportunity charging at any convenient power point for optimum uptime
    • Charging time of only 2.5 hours


    • Compact chassis (L2: length including fork back of only 400 mm) ensures maneuverability
    • Powered traction driving and lifting capacity facilitate transport of loads up to 1.5 tons
    • 48 V 20 Ah or optional 30 Ah lithium-ion battery increases working time up to 3 hours
    • 180 kg light weight truck can even be used on mezzanines

  • Service

    • DC motor extends maintenance intervals and reduces service costs

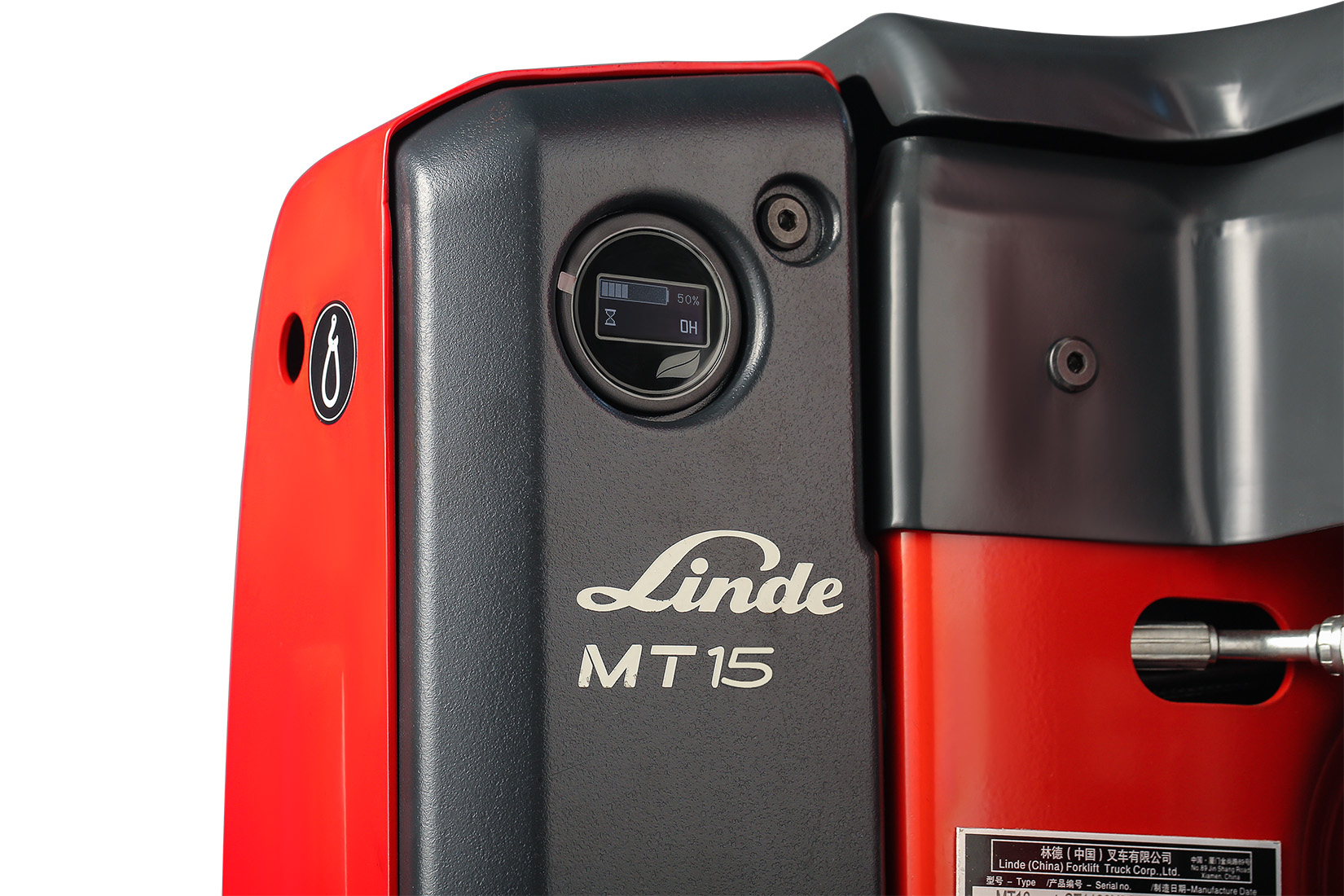

    • Multifunction display informs operator about truck status
    • Battery management system ensures the quality and durability of the battery
    • Service technicians can transfer and read out data to notebook via CAN bus connection
    • All components are easily accessible

Technical data

Model Capacity Lift height Fork lenght Steering wheels - wheels (type) Battery fork rollers fork width Data sheet
Linde MT15 1.500 kg 115 mm 1.150 mm Vulkolan 48/20(V/Ah) Boogie vulkolan 540 mm

Download technical datasheet
