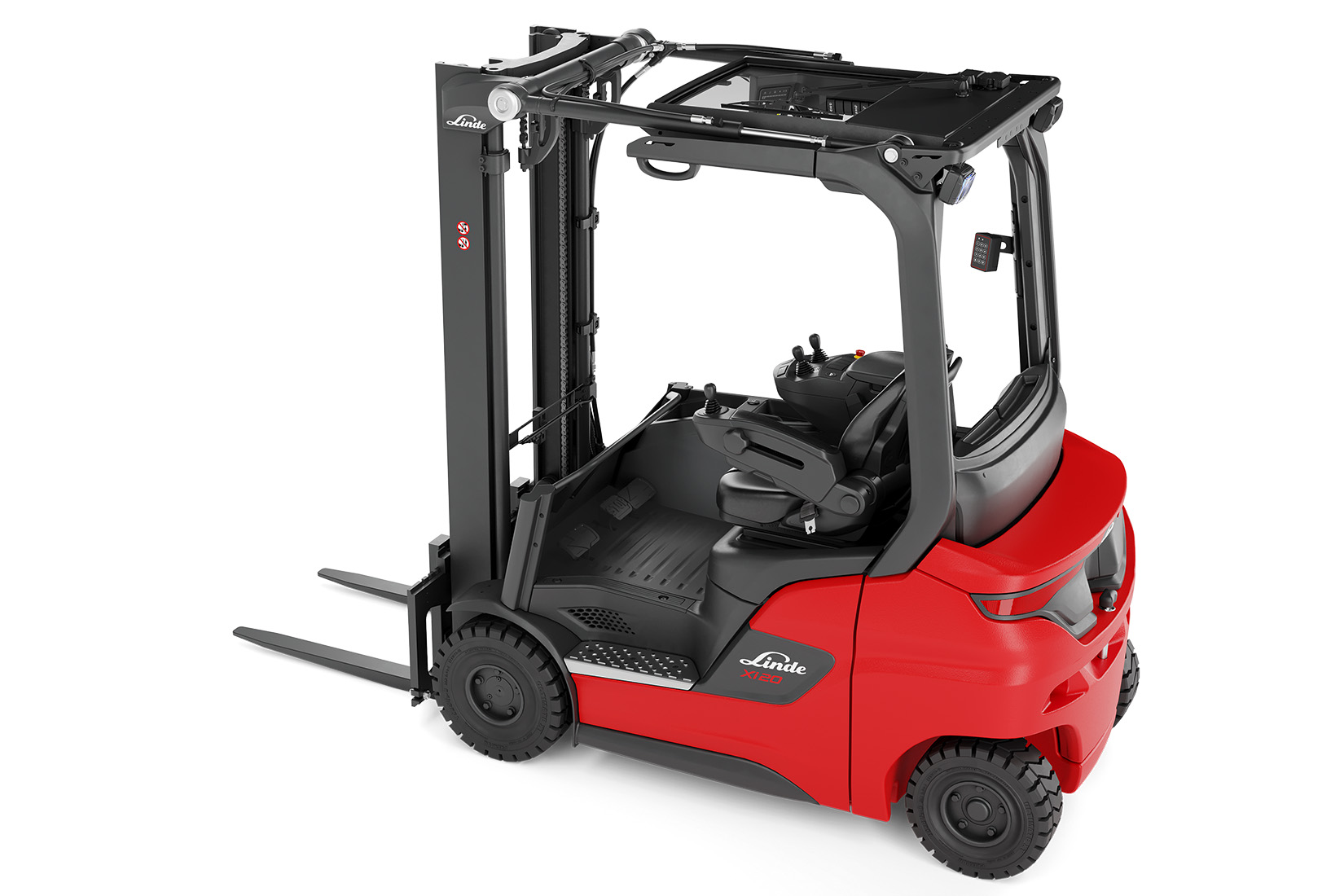

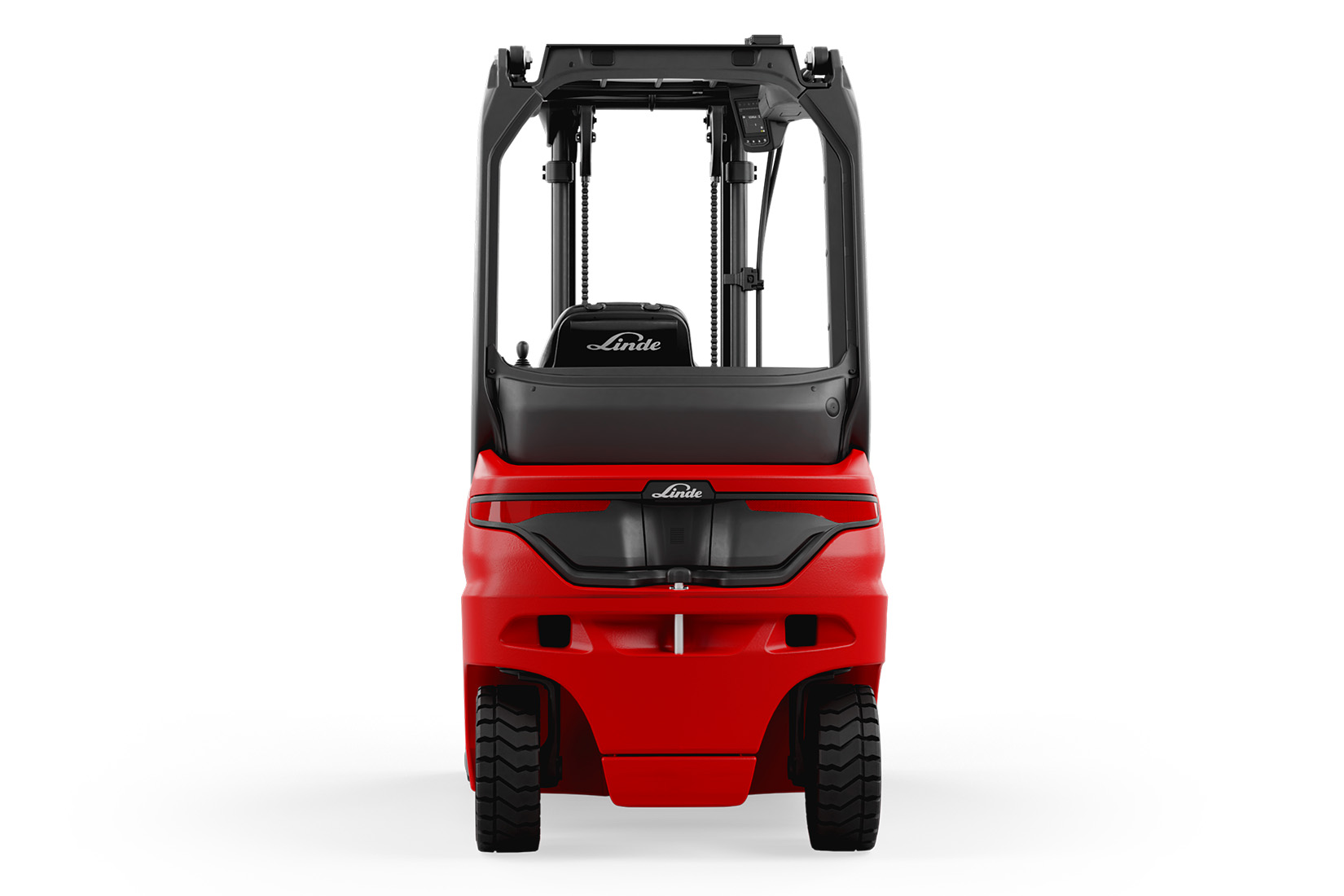

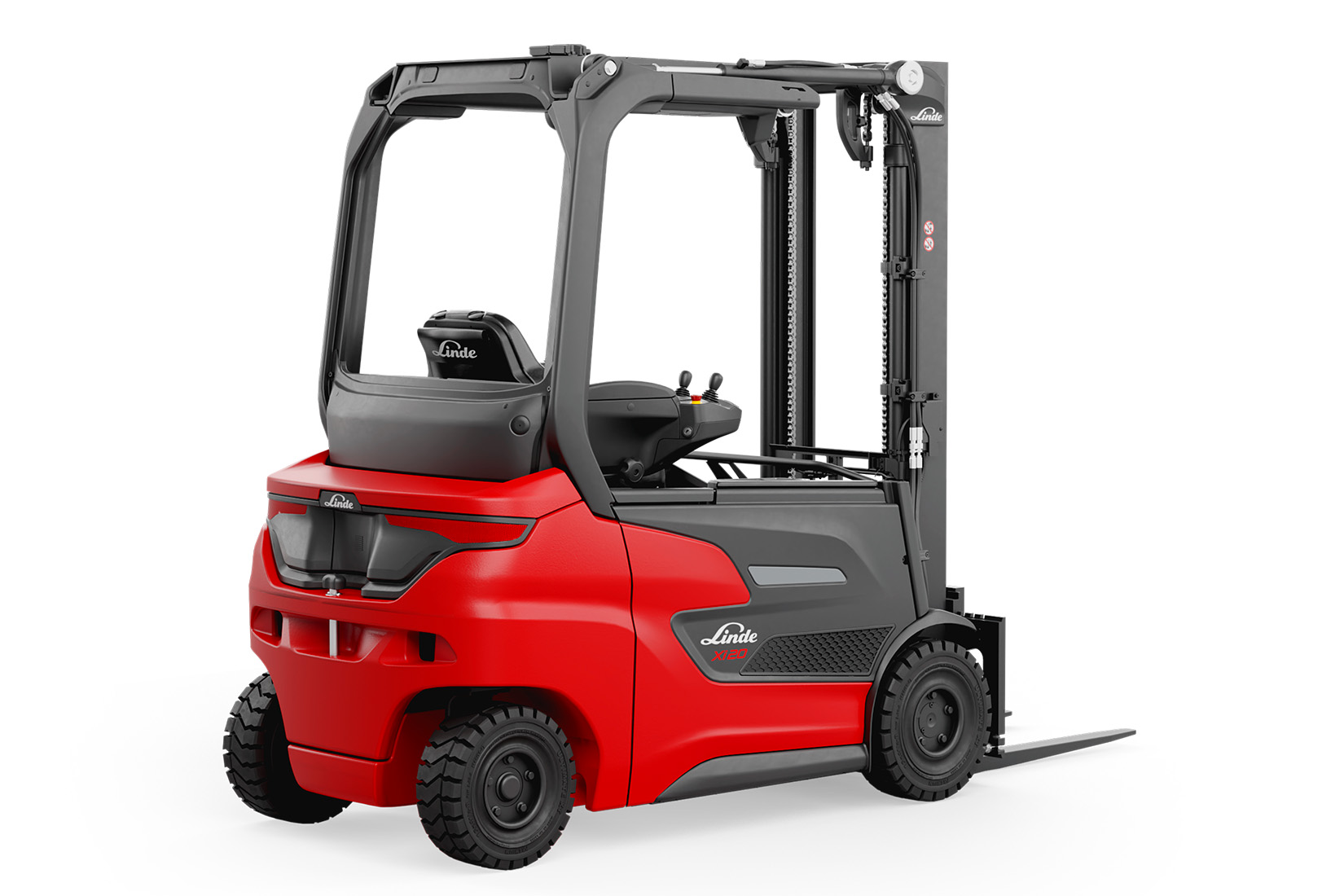

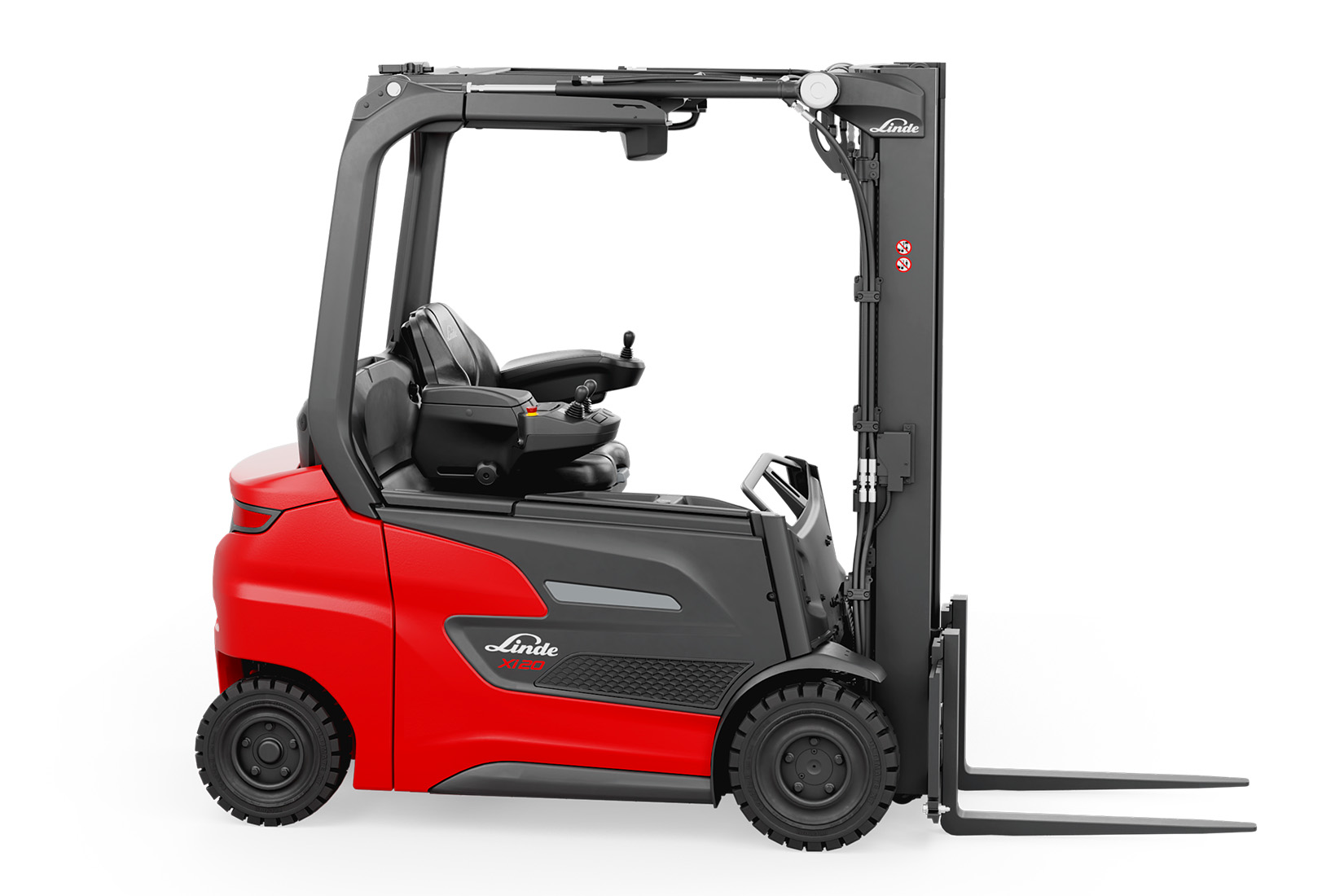

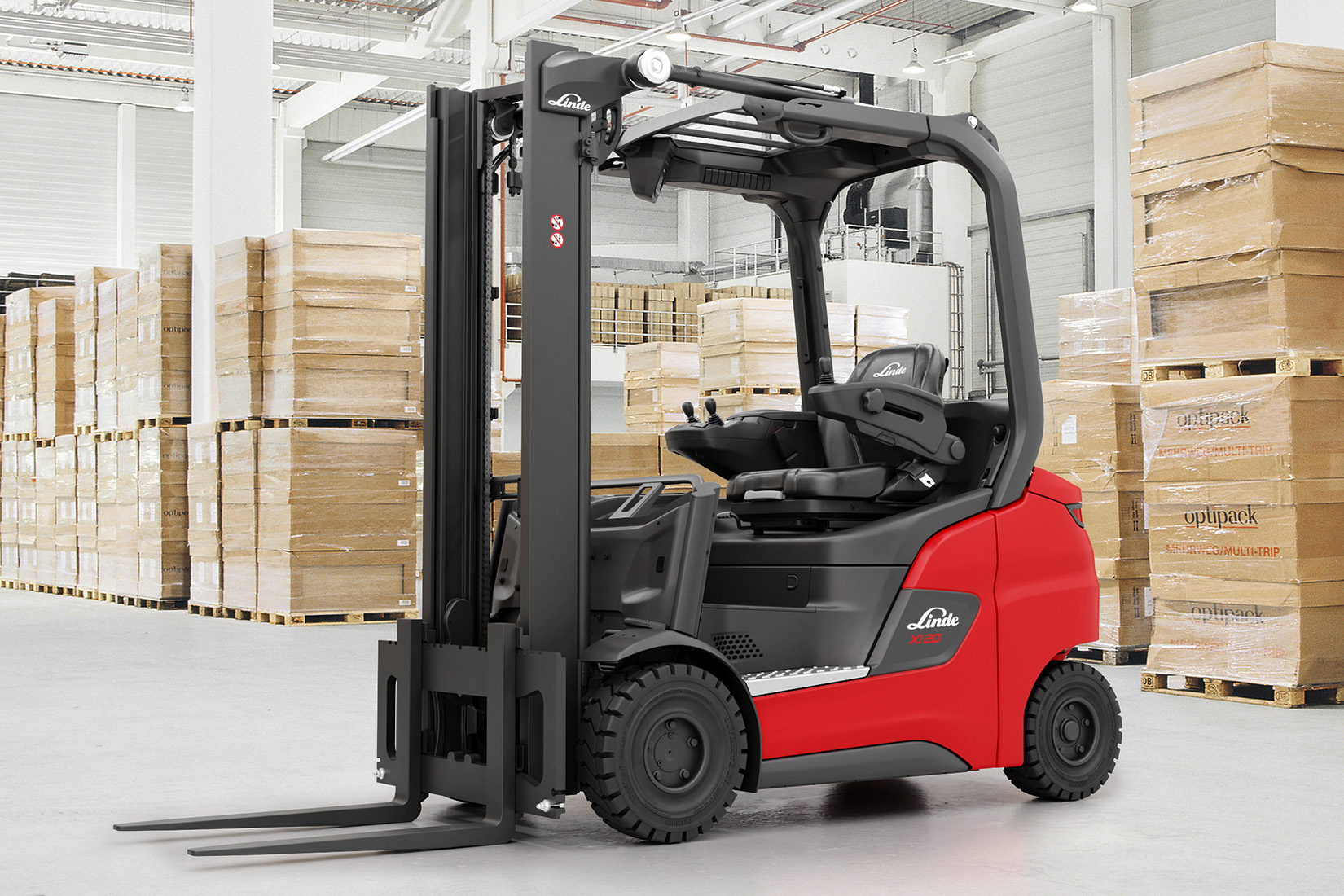

Linde Xi16-20RP

With their focus on the best-possible all-round visibility, the Xi16 – Xi20 RP trucks set new standards in terms of work safety. Removing the A-pillar has given the operator a better view to the front and an optimum overview of their working area. This is a key benefit in terms of safety, especially in areas with high volumes of forklift or pedestrian traffic. Particularly when combined with the optional Linde Steer Control, the removal of the A-pillar allows a completely unrestricted and unrivaled view to the front. Narrow cross struts in the protective roof or an optional armored glass roof further optimize visibility and provide an unrestricted overhead view when stacking at higher levels.

• Design details such as the truck’s low center of gravity and the overhead tilt cylinders guarantee the highest possible level of stability even at maximum lifting heights. The sturdy roof construction also offers outstanding protection against falling objects. An electronically monitored seat belt buckle and automatic parking brake offer the driver optimum protection. In addition to this, there are also safety assistants fitted as standard. Linde Curve Assist automatically regulates the driving speed on bends. Linde Load Assist restricts mast tilt and lifting movements depending on the load weight and lifting height to prevent tipping accidents.
• Roadster design enables maximum all-round visibility
• Protective roof with perfect visibility when stacking at height
• Outstanding fall protection thanks to solid roof construction
• Linde Curve Assist and Linde Load Assist included as standard for safe cornering and load handling
• Extensive range of optional safety systems

hanks to the optimized visibility of the Xi16 – Xi20 RP, drivers no longer need to constantly look around the A-pillar. This also allows them to maintain a relaxed sitting posture while maneuvering, which takes the strain off their back and neck. By eliminating the need for a classic battery tray, the integrated Li-ION battery also maximizes the available space in the interior. The result is more head clearance, more generous legroom, and optimized entry with a wider and lower step. The driver’s cab also impresses with a full-graphic 3.5-inch display and ergonomically positioned controls.

The innovative Linde Steer Control operating concept is available as an option, with a joystick or mini-wheel in the armrest replacing the conventional steering wheel. The combination of dual pedal control and Linde Load Control ensures a comfortable sitting position and intuitive truck control. The mast, drive axle, and steering axle are decoupled from the chassis using elastomer ring bearings to protect the operator from harmful human vibrations when driving over uneven ground. An extensive range of comfortable seats ensures fatigue-free and focused work.

• Design with optimized visibility for ergonomic sitting posture
• Spacious driver’s cab thanks to integrated Li-ION battery
• Optional Linde Steer Control with joystick or mini-wheel for reduced physical strain
• Decoupled chassis protects against human vibrations
• Range of seat versions for personalized comfort

As a Roadster version, the Xi16 – Xi20 RP trucks combine all the advantages of Linde’s proven Xi series with optimized all-round visibility. With travel speeds of up to 20 km/h and a lifting speed that exceeds the industry average by around 20 percent, these trucks are the productivity champions in their load class. Thanks to the perfect interplay of 90-volt technology, advanced synchronous reluctance motors, and sophisticated thermal management, they deliver consistently high performance even during the most intensive operation. The Linde combi-steering axle ensures optimum agility and stability. The optional on-board charger also enables straightforward opportunity charging in any location. Plus, the modern system architecture means the trucks can be seamlessly integrated into digital processes and makes remote maintenance straightforward.

• Above-average driving and lifting speeds
• Combi-steering axle ensures maneuverability and stability
• Robust construction enables outdoor use
• Seamless integration into digital processes
• Optional on-board charger for opportunity charging

The Xi16 – Xi20 RP trucks impress thanks to their robust, low-wear design. Dust- and water-tight encapsulated electric motors plus maintenance-free components such as tilt cylinders and decoupling elements on the mast ensure a high level of operational availability and keep operating costs low. The modular design and easy-to-access service components significantly reduce maintenance and repair times. An overall inspection is only required after 1,000 operating hours, while the hydraulic oil and filter change are only required after 6,000 hours. To enable predictive maintenance and reduce the number of service calls required, wireless data transmission makes remote diagnostics possible.

• Robust construction and maintenance-free components
• Easily accessible service components
• Overall inspection after 1,000 operating hours
• Hydraulic oil change only required after 6,000 operating hours
• Option for remote diagnostics and predictive maintenance
