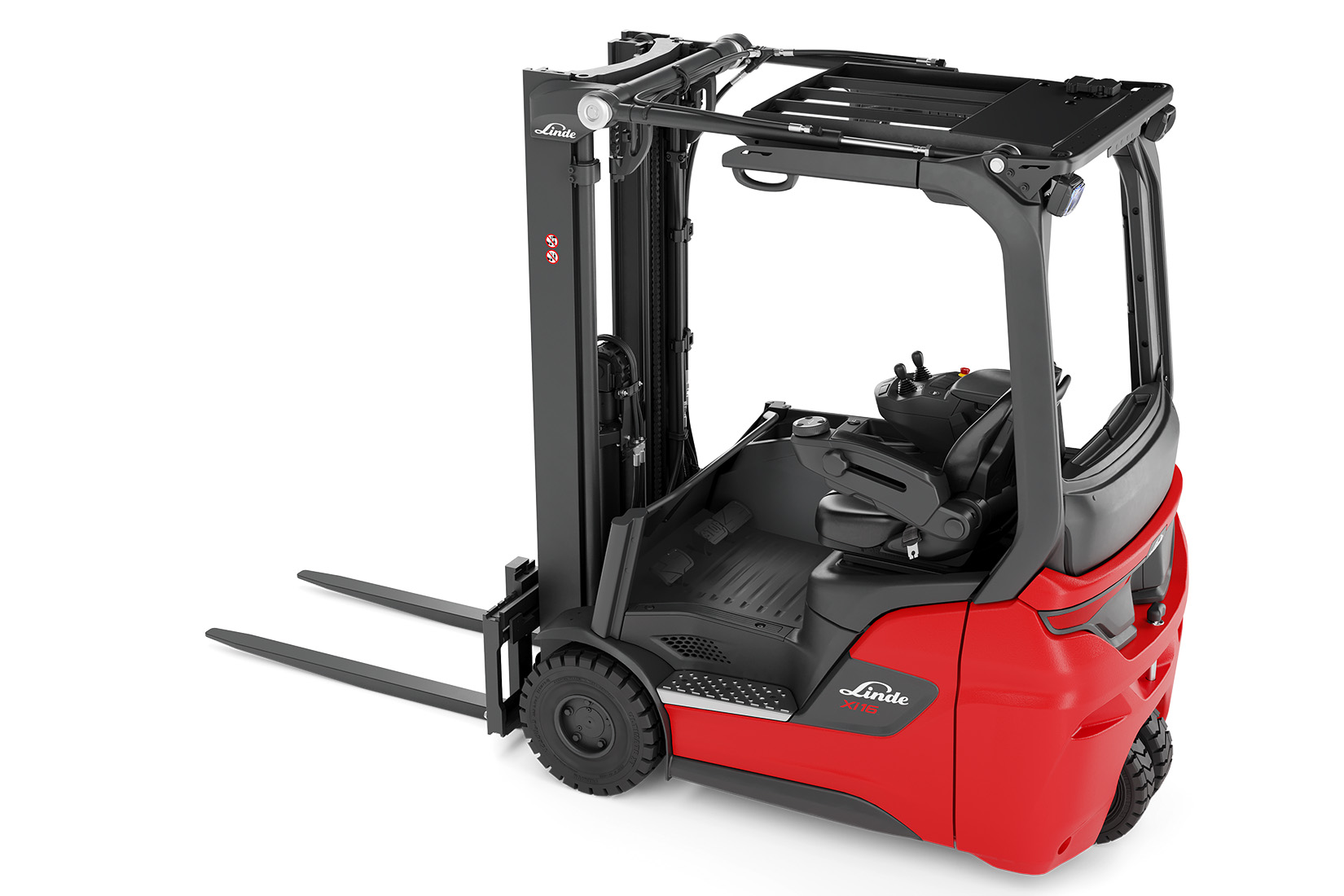

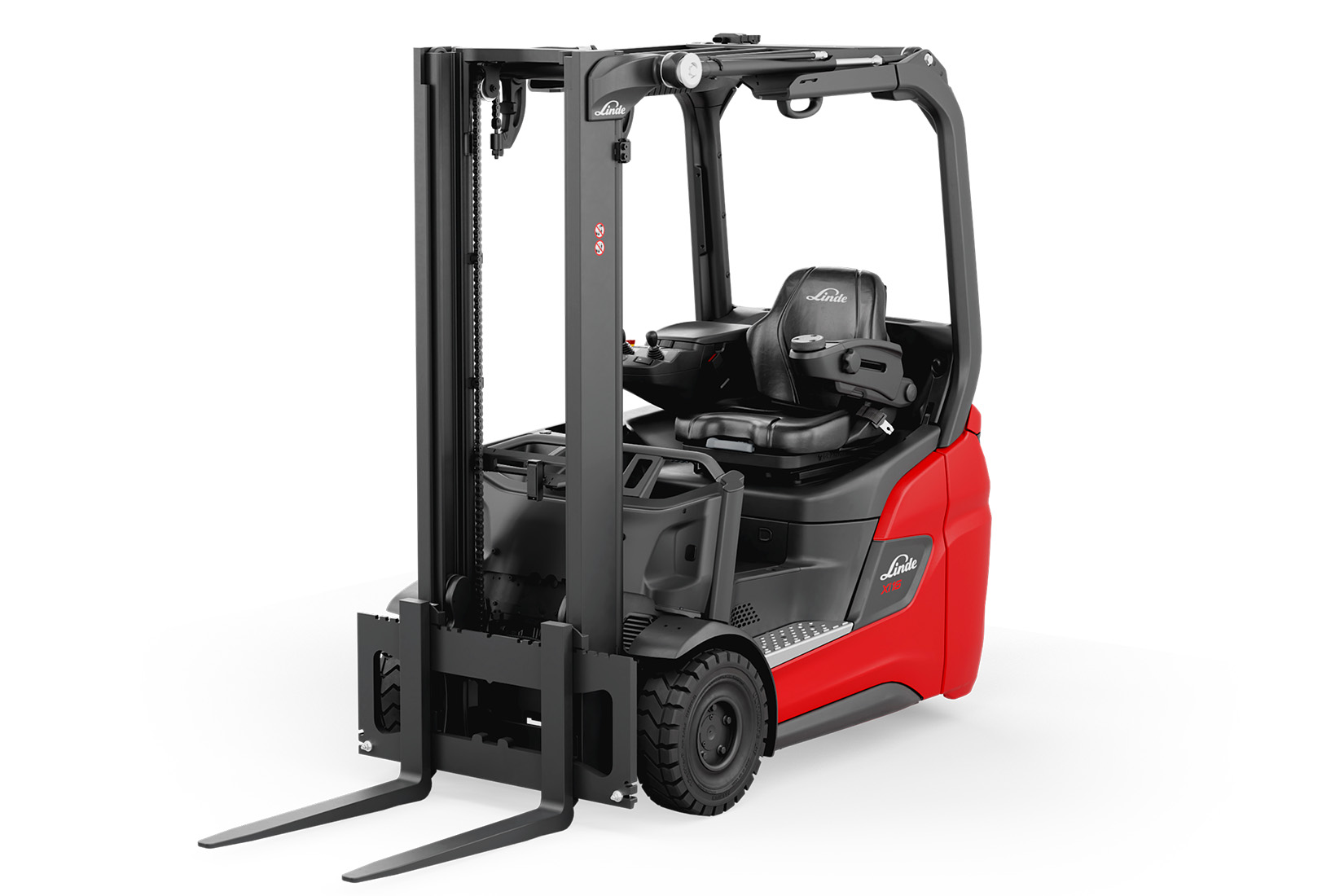

Linde Xi14-20R

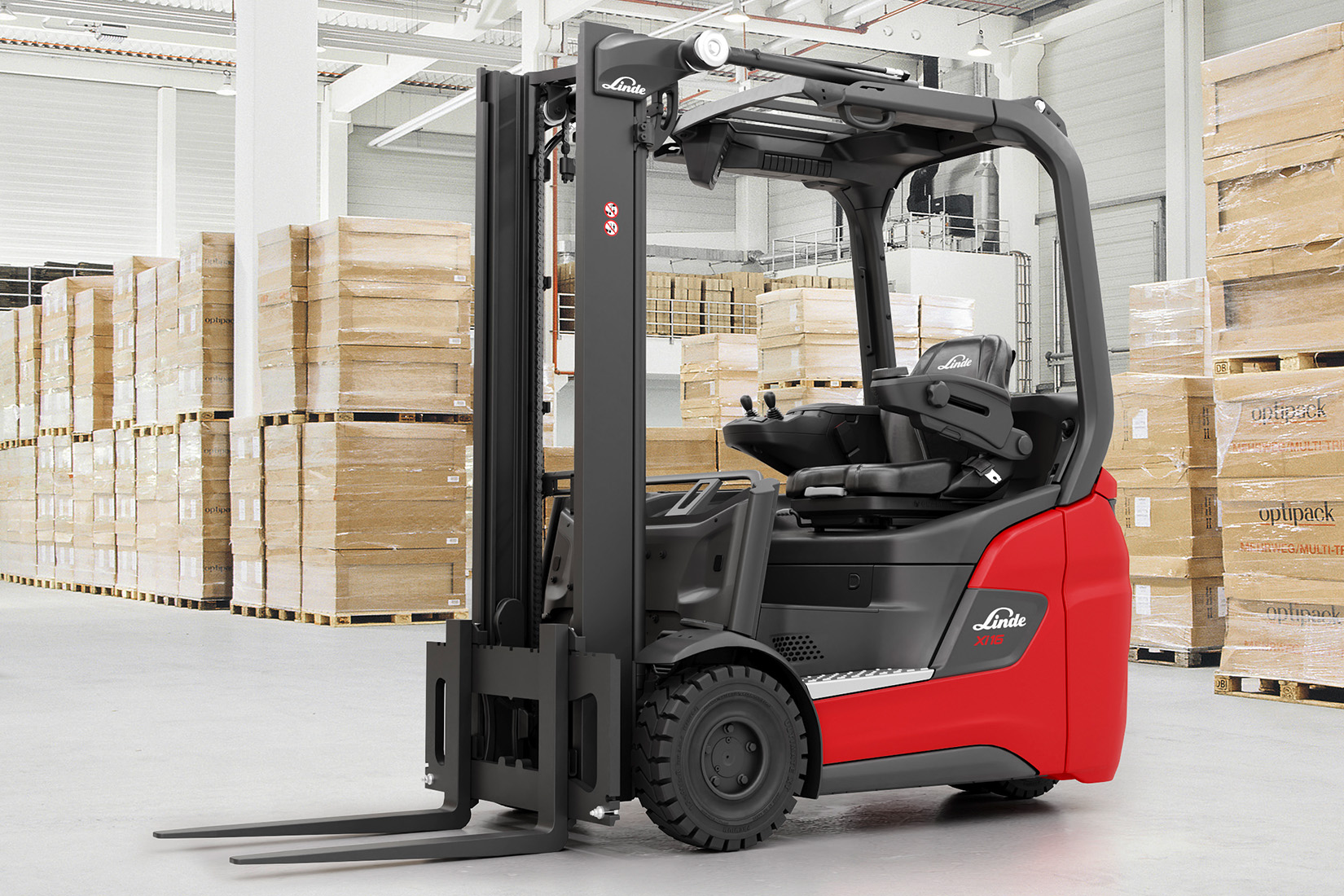

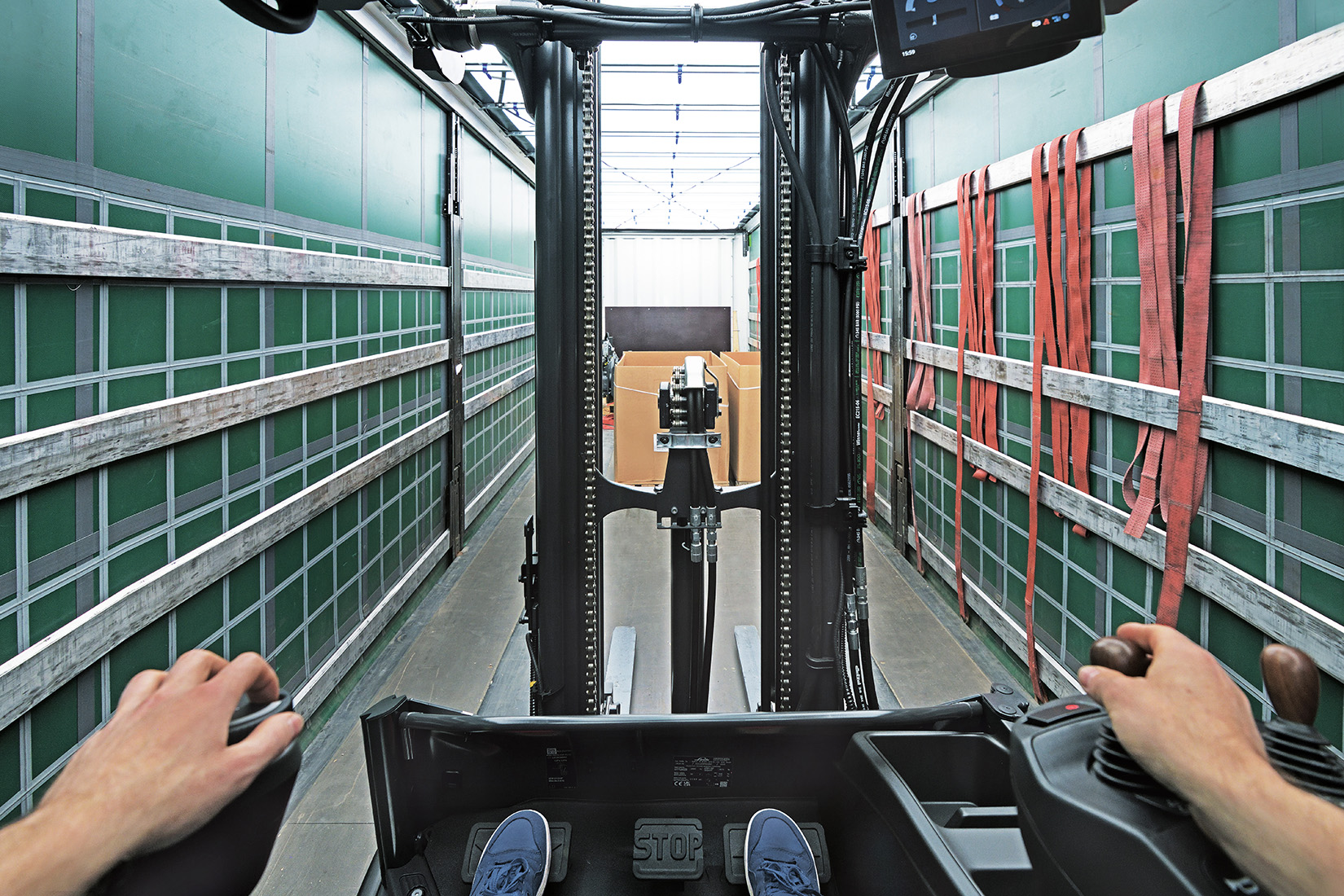

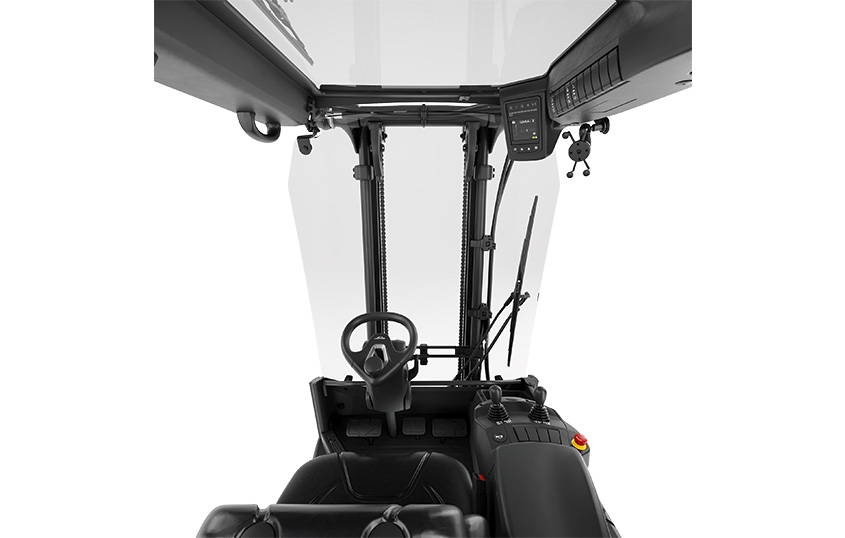

Designed for optimal visibility, the Xi14 – Xi20 R trucks take safety to a new level. The removal of the A-pillar provides an even clearer view to the front and helps to reduce the risk of accidents and load damage. This particularly applies when working in confined spaces with pedestrian traffic, such as transporting goods in a warehouse. The elimination of the A-pillar enables an unrivaled view of the load and surroundings, particularly when combined with the optional Linde Steer Control concept.

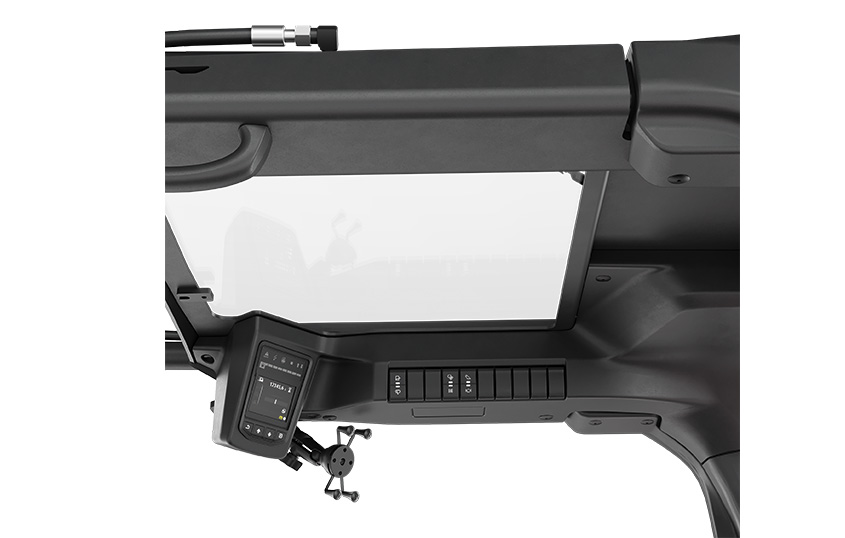

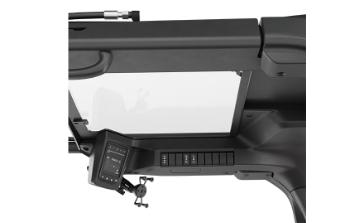

The protective roof structure with narrow cross struts or the optional armored glass roof also improve overhead visibility and provide a clear view of the goods when storing and retrieving in high shelving areas. What’s more, the sturdy roof structure offers outstanding protection against falling objects.

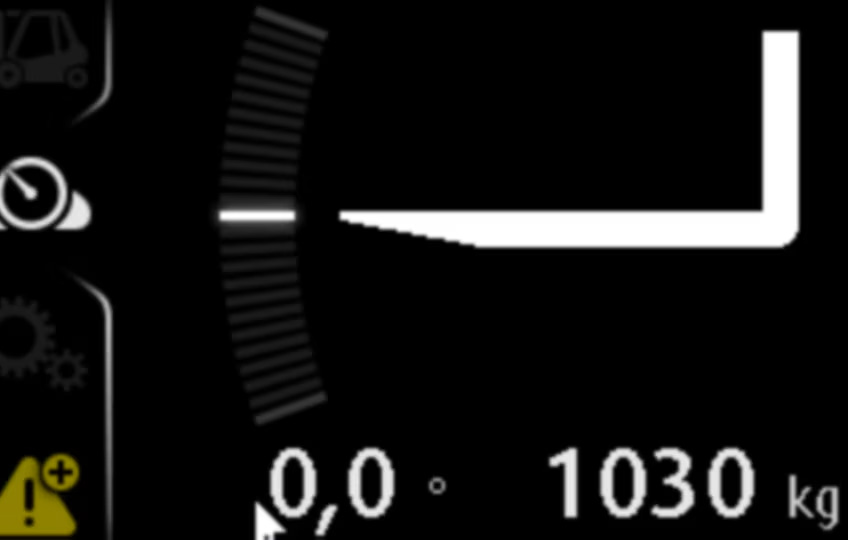

Design features such as the truck’s low center of gravity and the overhead tilt cylinders ensure maximum stability, even at large lifting heights. Electronic belt buckle monitoring and the automatic parking brake ensure optimum driver safety. The trucks’ safety features are complemented by a range of standard assistance systems. Linde Load Assist prevents tipping accidents by adapting the mast tilt and lifting movement to the current load. Linde Curve Assist automatically regulates the speed when cornering.

• Excellent all-round visibility thanks to the removal of the A-pillar
• Maximum fall protection thanks to sturdy roof construction
• Belt buckle monitoring and automatic parking brake
• Improved safety when cornering and handling goods thanks to Linde Curve Assist and Linde Load Assist as standard
• Numerous optional assistance systems for additional protection

Designed for optimal visibility, the Xi14 – Xi20 R trucks ensure that the driver does not have to constantly look around the A-pillar when maneuvering. This allows them to maintain a comfortable, back- and neck-friendly sitting posture for more of their working time. Thanks to their integrated Li-ION battery, the trucks also offer more head clearance, significantly more legroom, and a wider, lower entry step.

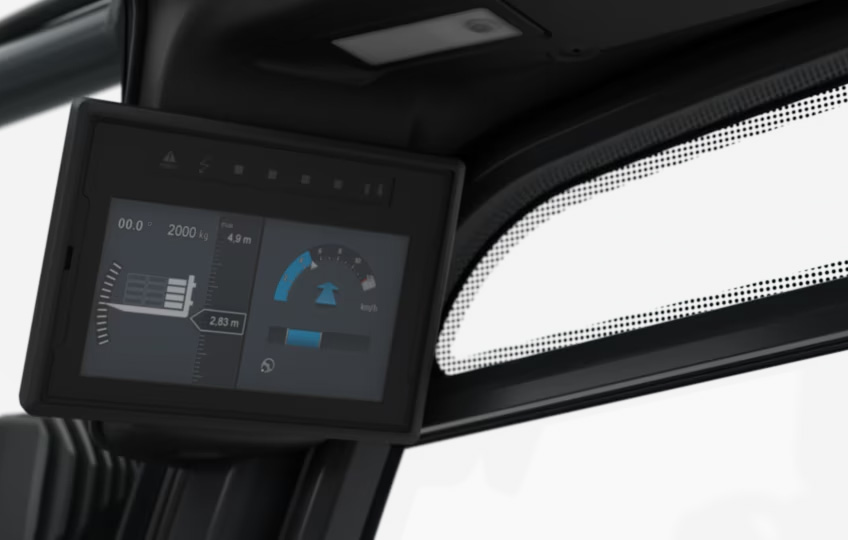

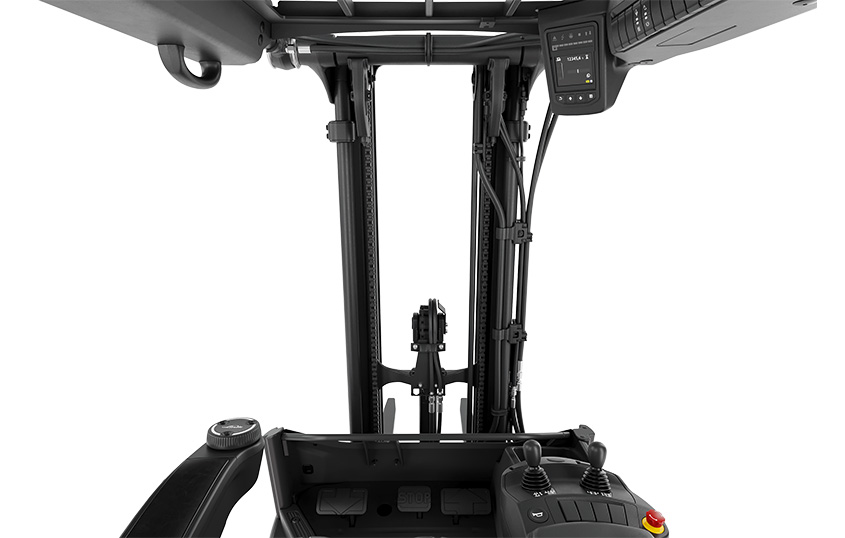

The driver’s cab features a full-graphic 3.5-inch display and user-friendly controls. The tried-and-tested operating concept consisting of dual-pedal control and Linde Load Control provides for intuitive control of the forklift truck. The trucks can be equipped with the optional innovative Linde Steer Control operating concept, whereby the conventional steering wheel is replaced by a joystick or a mini-wheel in the armrest.

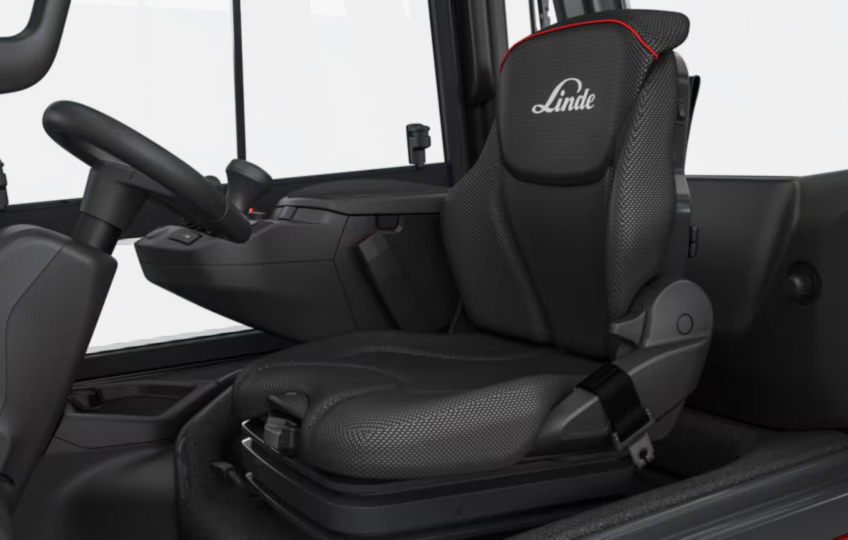

The mast and axles of the Xi14 – Xi20 R are decoupled from the chassis using elastomer ring bearings, which improves shock absorption and protects the driver from impacts and vibrations when driving on uneven surfaces. There is also a wide selection of comfortable seats available, so drivers can maintain a relaxed sitting position and focus on their work.

• Design with optimized visibility for ergonomic sitting posture
• Spacious driver’s cab with increased head clearance and legroom
• Optional Linde Steer Control for improved ergonomics
• Decoupled chassis protects against vibrations
• Range of seat versions for personalized comfort

As a Roadster version, the Xi14 – Xi20 R trucks combine all the advantages of Linde’s proven Xi series with outstanding visibility. The combination of 90-volt technology, synchronous reluctance motors, and intelligent thermal management ensures that the trucks deliver full performance at all times, even during continuous use in multi-shift operation. With maximum speeds of up to 20 km/h and lifting speeds around 20 percent higher than the industry average, the Xi14 – Xi20 R trucks are an absolute guarantee of productivity.

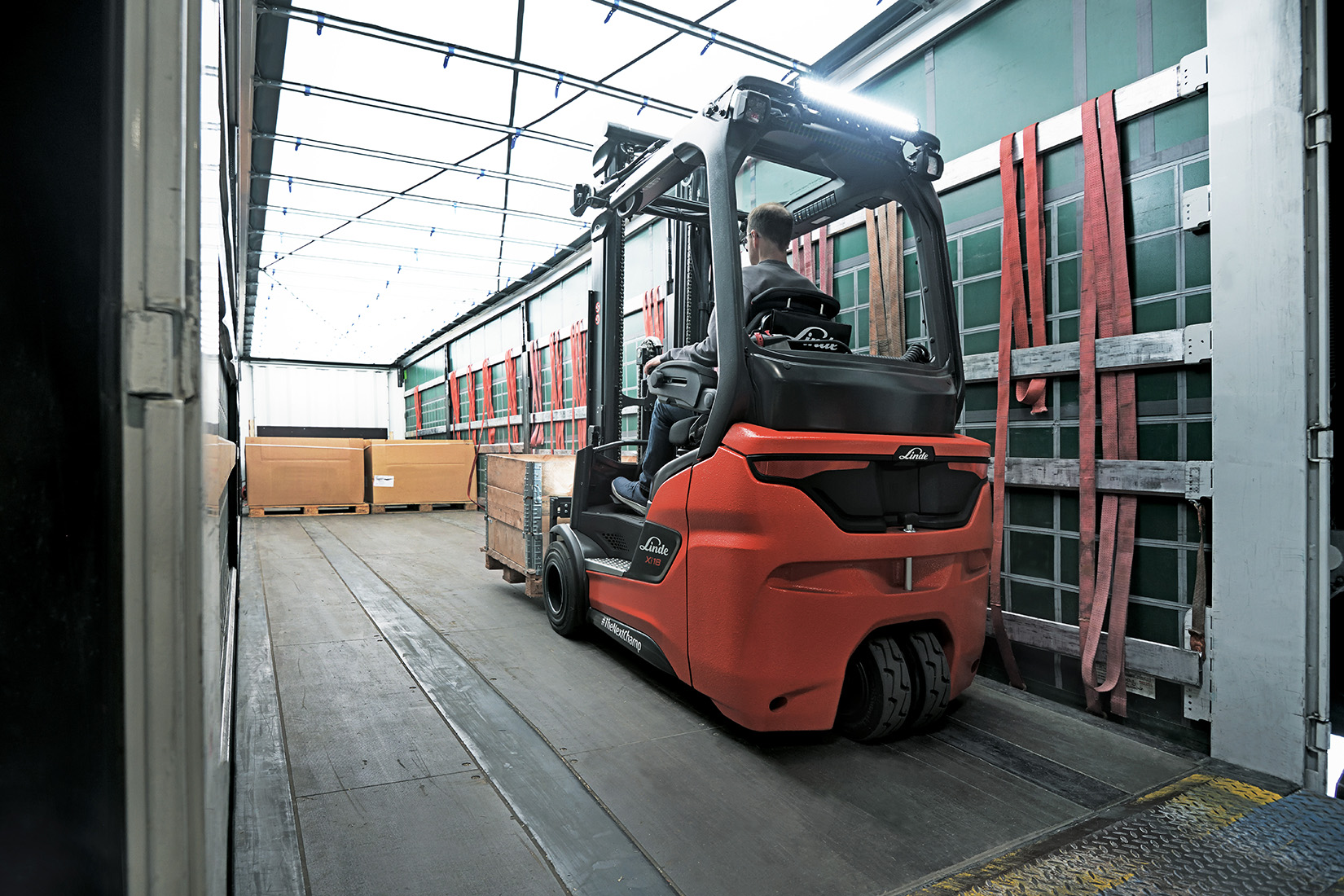

As a three-wheel version with a swivel axle, the trucks offer maximum maneuverability, and are therefore particularly well suited to demanding applications in confined spaces. The robust design also allows for occasional outdoor use. Thanks to modern system architecture, the forklift trucks can be seamlessly integrated into digital processes and maintained remotely. An optional on-board charger also enables fast opportunity charging in any location.

• High performance thanks to state-of-the-art drive technology
• Maximum maneuverability thanks to swivel axle
• Above-average driving and lifting speeds
• Digital integration and remote maintenance possible
• Optional on-board charger for flexible opportunity charging

The Xi14 – Xi20 R trucks were developed in line with the design-to-service principle and impress thanks to their robust, low-wear construction. Dust- and water-tight encapsulated electric motors plus maintenance-free components such as tilt cylinders and decoupling elements on the mast ensure a high level of operational availability with low operating costs. An overall inspection is only required after 1,000 operating hours, and the hydraulic oil and filter change only after 6,000 operating hours.

The modular design and easy-to-access service components significantly reduce maintenance and repair times. Wireless data transfer enables remote diagnostics, which allows for predictive maintenance and reduces the number of service calls.

• Robust design for high availability
• Maintenance-free, encapsulated components
• Overall inspection after 1,000 operating hours
• Hydraulic oil change after 6,000 operating hours
• Remote diagnostics for predictive maintenance
