  • DESCRIPTION

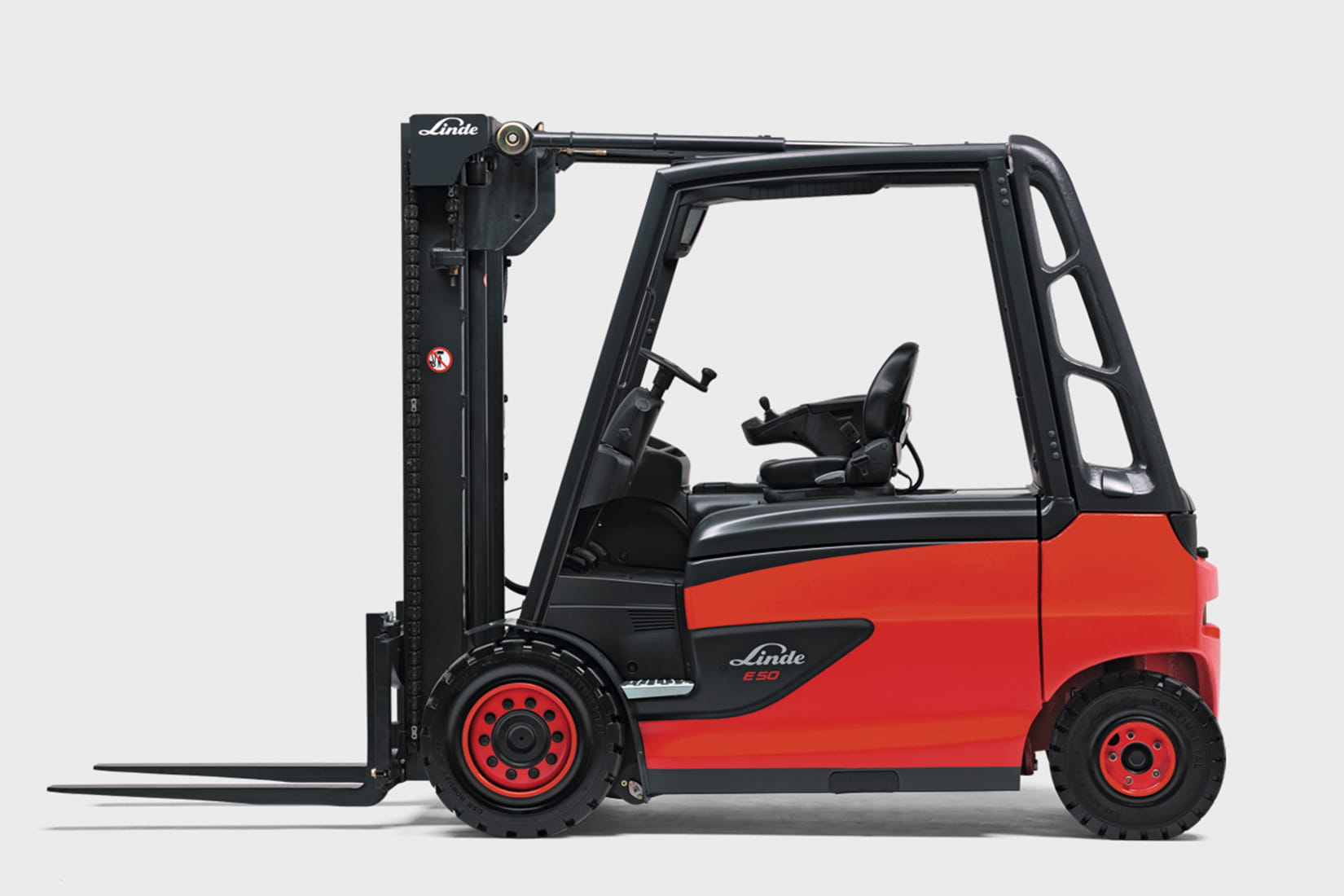

    Linde E35-E50/600 HL is the series of very powerful electric counterweight trucks. They have lifting capacities from 3,000 kg to 5,000 kg and can be adapted individually to a wide range of tasks and specific requirements. The series includes compact models for areas where space is at a premium and electric trucks with a wider wheelbase for tall, bulky loads. The two powerful three-phase motors of the Linde compact axle and Linde's dual pedal control ensure a high level of efficiency in a busy workday. With overhead tilt cylinders, electronic traction control and on-board high frequency chargers Linde E35-E50/600 HL electric trucks are safe, efficient and cost-effective.

  • SAFETY

    • Sturdy Linde Proctor Frame
    • Driver's cab with maximum protection
    • Full electronic traction control

  • Ergonomi

    • Ergonomically designed control panels
    • Adjustable armrest and driver's seat
    • Less vibration with sophisticated suspension system

Technical data

Model Capacity Load center Battery Data sheet
E35/600H 388 3.500 kg 600 mm 80Vx700/775ah/5h View data sheet
E40/600H 388 4.000 kg 600 mm 80Vx700/775ah/5h View data sheet
E45/600H 388 4.500 kg 600 mm 80Vx700/775ah/5h View data sheet
E40/600HL 388 4.000 kg 600 mm 80Vx840ah/5h View data sheet
E45/600HL 388 4.500 kg 600 mm 80Vx840ah/5h View data sheet
E50/500HL 388 5.000 kg 500 mm 80Vx840ah/5h View data sheet
E50/600HL 388 5.000 kg 600 mm 80Vx840ah/5h View data sheet
E40/600L-Container 388 4.000 kg 600 mm 80Vx840ah/5h View data sheet
E45/600L-Container 388 4.500 kg 600 mm 80Vx840ah/5h View data sheet
E50/500L-Container 388 5.000 kg 500 mm 80Vx840ah/5h View data sheet
E50/600L-Container 388 5.000 kg 600 mm 80Vx840ah/5h View data sheet
